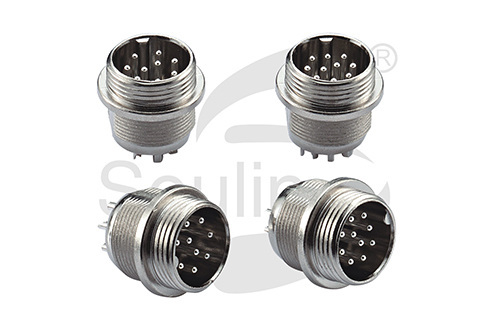

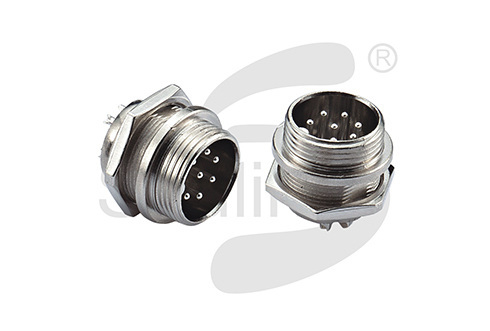

Aviation connector 16M plate end
-
The aviation head, or aviation plug, is a mechanical and electrical component connected to an electrical circuit.Aviation plug can also be called plug seat, widely used in all kinds of electrical lines, plays the role of connecting or disconnecting circuits. Improving the reliability of aviation plugs is first and foremost the responsibility of the manufacturer. However, due to the variety of aviation plug, a wide range of applications, therefore, the correct choice of aviation plug is also an important aspect to improve the reliability of aviation plug. Only through the joint efforts of both manufacturers and users can the aviation plug be fully functional.
| Plastic material |
73T3J |
| Color |
Black |
|
Insrlator material |
POLYESTER(UL94V-0) |
| Contact material |
Brass,Phosphor Bronze |
| Contact plating | Tin or silver platedover Ni |
| Current rating | 4P(5Amps),6P(3Amps) |
|
Withstanding Voltage |
AC1500Vmin/Minute |
| Insulation resistance | 2000MΩ Min |
| Contact resistance | 10mΩ MAX |
| Operation Temperature | -55℃to+120℃ |
1) Your enquiry will be answered within 12 hours.
2) We provide OEM, ODM services, product details can be made according to your requirements.
3) Excellent pre-sales and after-sales service.
4) Integration of factory and trade, 18 years of export experience
5) One-stop shopping
6) Competitive price;
7) Timely delivery
