产品详情

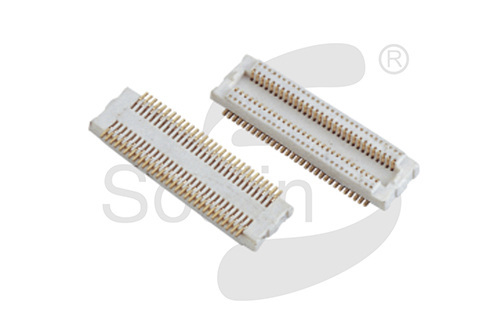

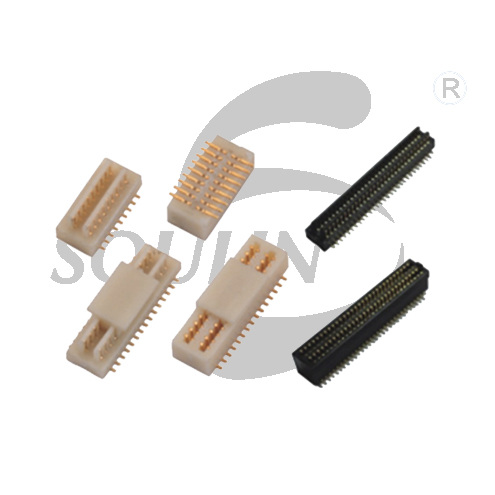

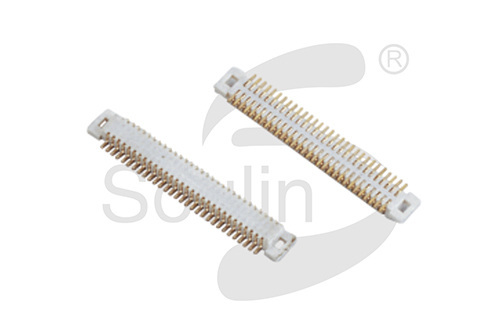

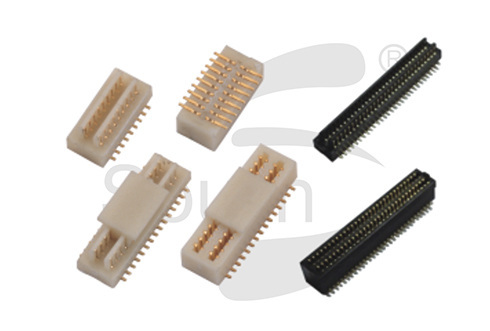

BTB0.5

  • Board - to - board connectors can be constructed for easy machine circuit design. The insulation wall is set on the bottom of the connector, so that the PCB board wiring and metal terminal do not contact can be wiring in the bottom face of the connector, for the miniaturization of PCB board is quite beneficial; Board to board contact structure, with strong environmental resistance, not only soft, and the use of high contact reliability of the firm connection, in order to improve the group force of the socket and plug, through the fixed metal parts and contact part of the simple locking mechanism, in improving the group force at the same time, so that the lock has a sense of inserting and pulling.

  • The use of board-to-board connectors also simplifies the production and testing of electronic equipment. Simplified testing in the electronics manufacturing industry reflects significant cost savings. High-density PCBS have more traces and components per unit area, and equipment or products are best designed with several interconnected MDBS rather than a single HDBS.

Plastic material PA9T+30%G.F
Color

Black

Insrlator material

POLYESTER(UL94V-0)

Contact material

brass

Contact plating AU OR SN OVER 40U"NI
Current rating 5.0Amps

Withstanding Voltage

AC1000Vmin/Minute
Insulation resistance 1000MΩ Min
Contact resistance 20mΩ MAX
Operation Temperature -40℃to+105℃
