2.50mm pitch pin header

2.50mm pitch pin header
2021-03-01 00:43:15
咨询服务热线:
86 0755-29520696
产品详情

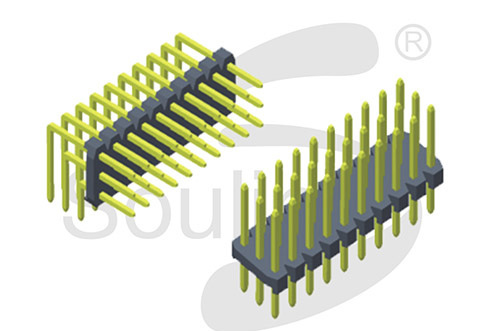

2.50mm pitch pin header

  • Row pins are a form of electronic connector that is widely used in electronic or instrumentation PCB functions as a bridge between two PCBS that are plugged and used to receive current or signal transmission. It consists of one or more rows of external columns usually 2.54mm apart, but common sizes include :5.08mm, 3.96mm, 2.00mm, 1.27mm, and 1.0mm. The distance between rows of pins is often referred to as the distance between electronic communities. Row pins are made of plastic and metal contact and are usually inserted into the female head to connect the plate to another plate.

Plastic material PBT/PA6T/PA9T/LCP+30%G.F
Color

Black、gray

Insrlator material

POLYESTER(UL94V-0)

Contact material

brass

Contact plating AU OR SN OVER 40U"NI
Current rating 3.0Amps

Withstanding Voltage

AC1000Vmin/Minute
Insulation resistance 1000MΩ Min
Contact resistance 20mΩ MAX
Operation Temperature -40℃to+105℃
