1.0mm pitch female header

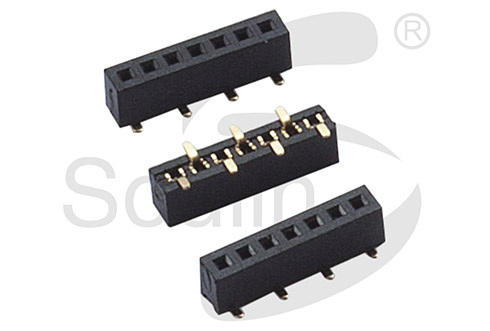

FH1.0 single row single plastic SMT left front right rear

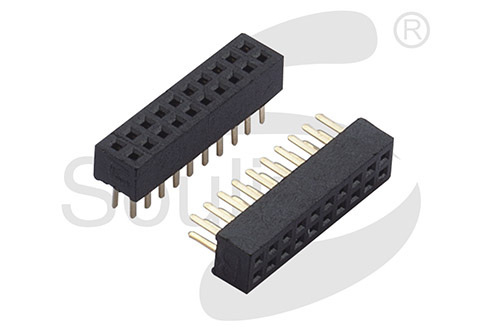

FH1.0 dual row single plastic straight
2020-10-26 09:19:41
咨询服务热线:
86 0755-29520696
产品详情

1.0mm pitch female header

  • Female Header is a type of connector.This connector is widely used in electronic, electrical, instrument in the PCB circuit board, its role is in the circuit is blocked or isolated between the circuit, play a bridge function, take up the task of current or signal transmission.Usually used with row pin matching, forming a board-to-board connection; Or matching with the electronic wiring harness terminal, forming a board-to-wire connection; Can also be used independently for board to board connection.Because the specifications required by different products are not the same, there are also a variety of specifications.



Plastic material PBT/PA6T/PA9T/LCP+30%G.F
Color

Black、gray

Insrlator material

POLYESTER(UL94V-0)

Contact material

brass

Contact plating AU OR SN OVER 40U"NI
Current rating 3.0Amps

Withstanding Voltage

AC1000Vmin/Minute
Insulation resistance 1000MΩ Min
Contact resistance 20mΩ MAX
Operation Temperature -40℃to+105℃
